The Ultimate Guide to Cutting Fabric with a Laser Cutter

Why Choose a Laser Cutter for Fabric?

Mechanical cutting has its limits, and those limits show up quickly when the material is delicate, flexible, or just plain unforgiving. Laser-based cutting sidesteps most of those problems and the reasons why are worth understanding before you commit to any particular setup.

The Advantages of Non-Contact Processing

At its core, laser cutting works without ever touching the material. A high-energy beam tracks along a set path, heating, melting, or vaporizing the fabric as it goes — no blade, no mechanical pressure, no physical contact whatsoever. That distinction matters more than it might seem. Traditional cutting methods frequently distort or deform fabric simply because something is pressing down on it. Remove that pressure, and you remove the problem. Cuts come out dimensionally stable, edges stay clean, and fraying or unraveling becomes a non-issue. The focused nature of the beam also keeps heat tightly concentrated, which means the surrounding fabric isn’t affected — no yellowing, no hardening along the edges. For intricate patterns or detailed designs where edge quality can make or break the finished product, that level of control is exactly what’s needed.

Key benefits include:

• Elimination of frayed edges: The laser’s heat seals the edges of synthetic fabrics, preventing unraveling.
• Intricate design capability: Laser cutting can produce complex, fine details that are impossible with traditional die-cutting or knife cutting.
• Reduced material waste: Computer-controlled cutting allows for tight nesting of patterns, maximizing fabric usage.

Significant Improvements Over Traditional Cutting Methods

When compared to conventional techniques like knife cutting, die-cutting, or plasma cutting, laser technology offers clear and measurable improvements. The following table summarizes these key distinctions.

Core Technical Parameters and Material Adaptability for Laser Cutting Fabric

Successfully cutting fabric with laser cutter technology depends on understanding the interaction between the laser and the specific textile. Not all fabrics react the same way, and optimizing the process requires careful control of several variables.

CO₂ Laser Cutting Parameters for Different Fabrics

CO₂ lasers handle non-metal materials well, and fabric is where they really prove their worth. Three things control the outcome: laser power, cutting speed, and focus position. Nail all three and the results are clean and repeatable. Miss on any one of them and problems follow fast — scorched edges, incomplete cuts, melted fibers. In a production environment, none of that is acceptable. The bigger challenge is that no single setting works across the board. Thin cotton and thick synthetic fabric respond to the beam in completely different ways, so each material needs its own configuration — dialed in around its specific weight, weave structure, and fiber makeup.

Thin and Delicate Fabrics (e.g., silk, thin nylon, light cotton):

These materials are highly susceptible to heat damage. They require low power settings  and high cutting speeds to minimize the heat-affected zone and prevent scorching or melting. A common strategy for achieving a good result without burning is to start with a high-speed, low-power setting and gradually adjust.

Thick and Dense Fabrics (e.g., canvas, denim, heavy upholstery):

These materials require more energy to cut through. They benefit from higher power levels  and slower cutting speeds to ensure a complete, clean cut.

Synthetics (e.g., polyester, nylon):

These materials melt rather than burn, which actually works in your favor — a properly tuned laser seals the edge as it cuts, eliminating fraying without any additional finishing. The tradeoff is heat management. Push the power too high, and the edges come out hard or discolored, which creates its own set of problems. Finding the right balance takes some testing, but it’s worth the effort. For trickier materials where heat buildup is harder to control, running compressed air or nitrogen as an assist gas makes a real difference — it cools the cutting zone as the beam works, keeping yellowing and charring to a minimum.

The Critical Role of Vision Recognition Systems

Vision recognition is changing how fabric gets cut. Mimowork’s in-house camera system reads the fabric as it lies on the cutting bed — eliminating guesswork and cutting down on waste through sharper accuracy and faster throughput.

1.High Precision for Patterned Fabrics:

For materials with prints, patterns, or specific weaves, accurate cutting requires the laser to follow the pattern precisely. The MimoVISION / CCD Camera System can identify registration marks or the pattern itself, and adjust the cutting path in real-time to ensure each cut piece is perfectly aligned. This is crucial for high-value materials where misalignment leads to waste.

2.Increased Automation and Efficiency:

Vision systems can automatically identify the cutting area, enabling “panoramic” or “large-format” cutting. The system can map out the entire cutting area and automatically position the cuts for maximum material utilization. For cutting small patterns on a large roll, a high-resolution small-format vision system is recommended for accuracy. For bulk processing of large, uncut fabric, a large-format system is faster and more cost-effective.

Overcoming Common Challenges in Fabric Laser Cutting

While highly effective, the process is not without its challenges. The primary issue is the heat generated by the laser. If not managed properly, it can cause problems like:

• Edge discoloration — yellowing or visible burn marks — tends to show up most on white and light-colored fabrics, and certain synthetics are especially prone to it. When it becomes an issue, there’s no single fix; it usually takes a combination of adjustments. Increasing cutting speed helps, as does pulling back on power. Running an assist gas — air or nitrogen both work to keep the cutting zone cooler and noticeably reduce discoloration. It’s also worth checking the focal point; if it’s not sitting precisely on the material surface, heat distribution goes off, and edge quality suffers.
• Edge Hardening/Melting: This often occurs with synthetics. The Air Assist system helps blow away debris and cool the cutting area, effectively preventing excessive melting.
• Warping or Displacement: Thin or heat-sensitive fabrics can warp or shift during processing. To prevent lightweight fabrics from moving or curling at the edges during cutting, Mimowork employs a High-Power Vacuum System that uses strong suction to hold the material flat against the conveyor belt or honeycomb worktable. Additionally, intelligent nesting software can optimize cutting paths to ensure a stable processing environment.

How to Choose the Right Laser Cutting System for Fabric

Choosing the right system comes down to a few key factors: how much you’re producing, what materials you’re working with, and what you’re willing to spend. Get those clear, and the right fit becomes a lot easier to spot.

Choosing Between Flatbed and Automated Conveyor Systems

The two main types of fabric laser cutters are flatbed systems and those with integrated conveyor systems.

Flatbed Systems:

These are ideal for precision cutting of small to medium-sized pieces, intricate designs, and shorter production runs. The fabric is laid flat on a honeycomb or pin table, providing excellent support for detailed work. This is a great option for prototyping, custom work, and small-batch manufacturing.

Automated Conveyor Systems:

For high-volume production, an automated conveyor system is essential. These systems allow for continuous roll-to-roll cutting. The fabric is fed onto the cutting bed, processed, and then the finished pieces are moved off, allowing new material to enter. This significantly reduces manual labor and increases throughput. The choice often depends on the scale of your operation, with large-scale bulk fabric cutting for garments and other textiles being best served by high-efficiency automated systems.

Mimo Software Ecosystem and Customization Options: Building an Efficient Workflow

A modern fabric laser cutter is more than just a laser tube. Its performance is enhanced by a suite of customizable software and hardware components. When integrating cutting fabric with laser cutter technology, consider these critical elements:

Proprietary Software Ecosystem:

Mimowork provides a complete digital workflow for the textile industry.

MimoCUT:

The foundational laser cutting control software that makes importing design files and adjusting parameters simple and intuitive.

MimoNEST:

An automatic nesting (layout optimization) software that calculates the most economical layout to maximize the use of expensive fabrics, delivering significant material savings compared to traditional methods.

Key System Options:

These are features designed to enhance specific workflows. For fabric processing, options like the CCD Camera Recognition System (MimoVISION) for pattern alignment and the 1:1 Projection Preview System (MimoPROJECTION) for cut preview and positioning are invaluable. Other options include specialized cutting tables, such as a pin table for delicate fabrics or a honeycomb table for improved airflow and debris removal.

System Automation & Components:

For high-volume operations, automated loading and unloading cut down on manual handling and keep the machine running with less downtime. Adding a Multi-Laser Head Array multiplies throughput without expanding your footprint. And under the hood, the components that matter most — the laser source, focusing lenses, and drive motors — are what ultimately determine how accurately and reliably the machine performs day to day.

Innovative Applications of Laser Cutting in the Fabric Industry

The versatility of cutting fabric with laser cutter technology has led to its adoption across a wide range of industries.

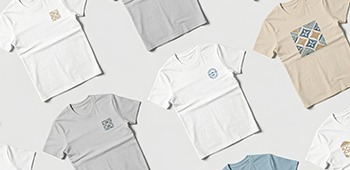

Fashion and Apparel

Laser cutting has found a natural home in fashion and activewear. For performance fabrics like sublimation polyester and spandex, it delivers clean, fray-free edges without disturbing the print underneath — something mechanical cutting simply can’t match. This makes it especially useful for custom team jerseys and fitted activewear, where both the cut line and the graphic need to come out intact. The result is a finished piece that holds its shape, keeps its design, and doesn’t require extra edge finishing.

Automotive Interiors and Home Upholstery

Automotive and furniture manufacturing both work with materials that leave little room for error — leather, vinyl, and multi-layered composites all require clean cuts that hold up under use. Laser cutting handles this well: stitching patterns for car seats come out consistent across every piece, and custom upholstery shapes for sofas and chairs can be cut without fraying or causing the layers to separate. When the material stack is complex, that kind of edge quality isn’t a bonus — it’s a requirement.

Frequently Asked Questions

Can a laser cutter cut all types of fabric?

Laser cutters handle a wide range of materials — cotton, polyester, nylon, leather, and felt, among them. The hard limit is anything containing chlorine, PVC being the most common. Cutting it releases gases that are toxic to operators and corrosive to the machine itself. Before running any unfamiliar synthetic through the cutter, check the material safety data first.

Will laser cutting cause my fabric edges to turn yellow or brown?

Edge discoloration shows up most on white and light fabrics, and it’s usually a heat problem. Faster speeds and lower power reduce the heat input, and getting the focal point right keeps energy concentrated where it needs to be. Compressed air or nitrogen assist gas helps too — both cool the cut zone and carry heat away before it spreads into the surrounding material.

Is laser cutting fabric expensive compared to traditional methods?

Laser cutters cost more upfront than a basic knife cutter — but the gap closes faster than most expect. No dies to make or replace, less wasted material when nesting is optimized, and less labor when the process runs automatically. For jobs that change frequently or involve complex shapes, the economics shift further in its favor.

What is the best type of laser for cutting fabric?

A CO₂ laser is the industry standard for cutting non-metallic materials like fabric. It operates at a wavelength (10.6 micrometers) that is readily absorbed by organic materials, making it highly efficient for textiles. Mimowork’s fabric cutting systems are standardly equipped with high-quality CO₂ laser sources, whether glass tubes or RF metal tubes, delivering stable and reliable output.

How do I prevent my fabric from moving during the laser cutting process?

To prevent shifting, which can ruin a cut, securing the fabric is essential. Mimowork systems utilize a High-Power Vacuum System to firmly hold the material in place on the worktable with strong suction. Additionally, the MimoPROJECTION 1:1 Projection Preview System allows for a precise layout preview before cutting, further ensuring processing accuracy.

Conclusion

No blade contact. Edges seal as they cut. Tolerances are tight enough for fashion fabrics and automotive upholstery alike. Getting there consistently means correct CO₂ settings, vacuum hold-down, and MimoVISION keeping alignment in check — that’s what keeps edge burn and material shift from becoming regular problems. MimoCUT and MimoNEST handle the software side. The machines are configurable, so the setup fits the job rather than the other way around.
