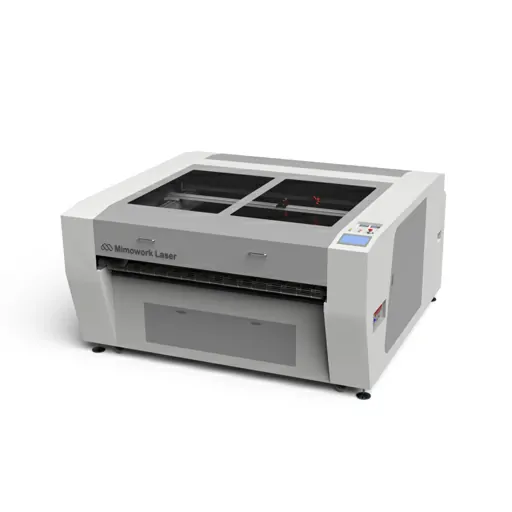

F160 Laser Cutter Machine
Fabric Laser Cutting for Apparel & Fashion
Engineered specifically for the apparel industry, the F160 Laser Cutter transforms fabric production. Its integrated conveyor and vacuum table system automatically feeds material from a roll and holds it perfectly flat, ensuring razor-sharp, sealed edges on textiles and leather without fraying. Designed for high-volume pattern cutting, it’s the reliable partner for fashion workshops ready to automate and scale their operation.
Get QuoteSPECIFICATIONS
F160 Laser Cutter Machine
Technical Data
| Working Area (W * L) | 1600 * 1000mm (62.9″ * 39.3″) |
| Laser Power (Watt) | 100w – 300w |
| Laser Source | C02 Glass Laser Tube |
| Max Speed | 400mm/s (15.7″/s) |
| Acceleration Speed | 4000mm/s2 (157.4″/s2) |
| Mechanical Control System | Step Motor Drive & Belt Control |
| Cooling Device | Water Chiller |
| Electricity Supply | 110V/ Single Phase/60HZ (Configurable for Regional Voltage) |
| Packing Size (W * L * H) | 2220 * 1550 * 1070mm (87.4″ * 61″ * 42.1″) |
Cut fabric, not corners. Precision for the fashion industry.
Designed for Soft Goods & Textiles
- Engineered for Continuous Fabric Cutting:
From rolls of fabric to precise patterns, the F160 is built for production. Its robust structure and optimized work area are designed for the high-volume, continuous cutting of flexible materials like textiles, felt, and leather, ensuring reliability shift after shift. - Seamless Integration with Fabric-Specific Peripherals:
Maximize productivity with a complete workflow. The F160 is engineered for high compatibility with essential accessories like automated feeding systems and Contour Vision Cameras, allowing you to create a tailored, automated cutting cell that slashes material handling time. - The Ideal Entry into Laser Fabric Cutting:
Transition from manual cutting or outdated methods with confidence. The F160 offers a focused set of powerful features without overwhelming complexity, making it the perfect starting point for workshops beginning to adopt laser technology for processing fabrics and soft materials.
F160 Laser Cutter Machine: Components

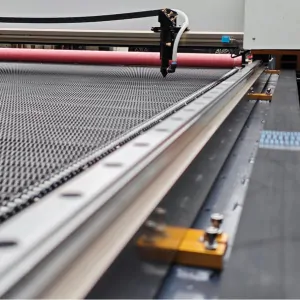

Integrated Conveyor System
Automate your entire cutting workflow. This complete system seamlessly feeds material from a roll, supports it during cutting, and automatically collects the finished pieces. This minimizes manual handling, dramatically increases throughput, and is ideal for processing long, continuous batches of fabric.
Vacuum Table for Perfect Material Flatness
Eliminate wrinkles and ensure precision. The negative pressure chamber gently but firmly holds the entire sheet of fabric perfectly flat against the cutting bed. This prevents material shifting and puckering, guaranteeing razor-sharp, accurate cuts every time, even on the most delicate or stretchy textiles.

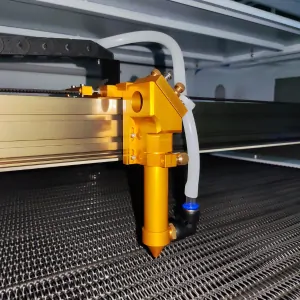

Specialized Air Assist for Fabric Cutting
Achieve clean, sealed edges without burn marks. The targeted air stream does more than clear debris; it’s precisely calibrated for fabrics. It helps prevent heat buildup that can cause discoloration and ensures the laser cleanly vaporizes the fibers, resulting in professionally finished, fused edges that won’t fray.
F160 Laser Cutter Machine: Optional Upgrades
Multi-Laser Head Array
Dramatically increase your cutting speed for high-volume orders. This system installs multiple laser heads that operate simultaneously, allowing you to cut multiple copies of a pattern or different patterns within the same job cycle. It’s the ultimate upgrade for maximizing throughput and reducing cost-per-part.

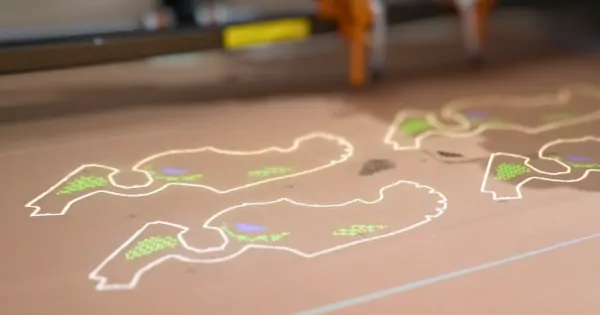

Integrated Projector System
Perfect your material layout and minimize waste. A high-resolution projector mounts above the work area, displaying a 1:1 outline of the cutting file directly onto the material bed. This allows operators to precisely position hides, leather, or fabric pieces to avoid imperfections and maximize material usage before cutting even begins.

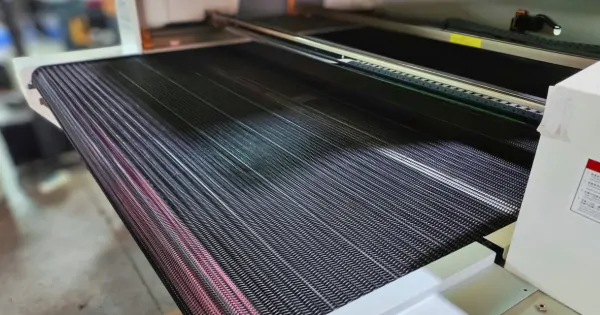

Extended Collecting Platform
Automate the handling of large or continuous cuts. This additional platform extension at the end of the machine provides a supported area for finished pieces to be cleanly collected. It is essential for processing long, uninterrupted cuts and ensures a smooth, automated workflow from feed to finished-part collection.

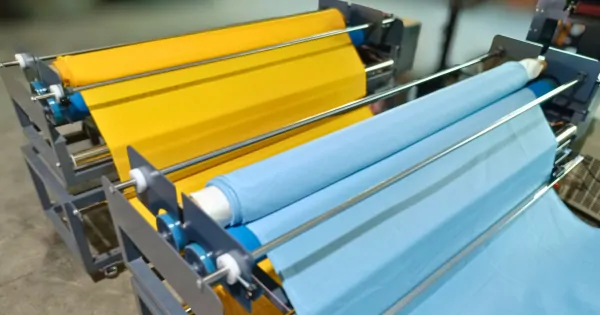

Multi-Layer Feeding System
Unlock the efficiency of stack cutting. This upgrade allows you to accurately feed and align multiple layers of fabric at once. The laser then cuts through the entire stack simultaneously, multiplying your output per job and significantly reducing production time for large batches of identical items.

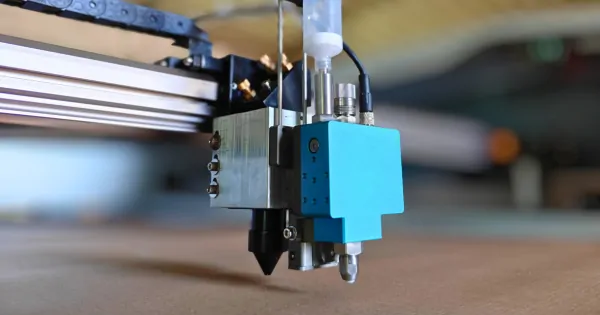

Integrated Inkjet Printhead
Combine marking and cutting in a single, seamless operation. Mounted directly beside the laser head, this printhead applies inkjet markings (like logos, size labels, or barcodes) onto the fabric immediately before or after cutting. Choose from various inks, including permanent, ThermoFade, or even invisible/fluorescent options, to meet diverse industry needs.
Related Videos
Can You Laser Cut Nylon?
Discover the secret to flawless fabric production. Watch as our laser cutter cleanly slices through ripstop nylon, sealing edges to prevent fraying and enabling intricate patterns for gear like backpacks and tents. This isn’t just cutting; it’s automated precision that speeds up your workflow for apparel and outdoor equipment, turning tough fabrics into profit with clean, professional results.
How to Cut Denim with a Laser Cutter
From custom jeans to mass production, see how a laser cutter transforms fabric work. This video demonstrates the fast, precise cutting of denim and polyester, sealing edges to prevent fraying for a professional finish. Discover how this technology handles intricate designs and tough materials, streamlining your workflow for apparel and custom goods.
Material Compatibility
| MATERIAL | ENGRAVE | CUT |
|---|---|---|
| Acrylic | ||
| Anodized Aluminum | ||
| Ceramic | ||
| Cloth | ||
| coated Metals | ||
| corian | ||
| Cork | ||
| Delrin | ||
| Fabric | ||
| Fiberglass | ||
| Glass | ||
| Leather | ||
| Marble | ||
| Stainless Steel | ||
| brass |
| MATERIAL | ENGRAVE | CUT |
|---|---|---|
| Matte Board | ||
| Melamine | ||
| Mother of Pearl | ||
| Myiar | ||
| Painted Metals | ||
| Paper | ||
| Plastic | ||
| Pressboard | ||
| Rubber | ||
| Tile | ||
| Wood | ||
| Wood Veneer | ||
| Titanium | ||
| Bare Metals |
* CO2 lasers wil mark bare metals when coated with a metal marking solution. For more information, vist our laser metal marking page.
