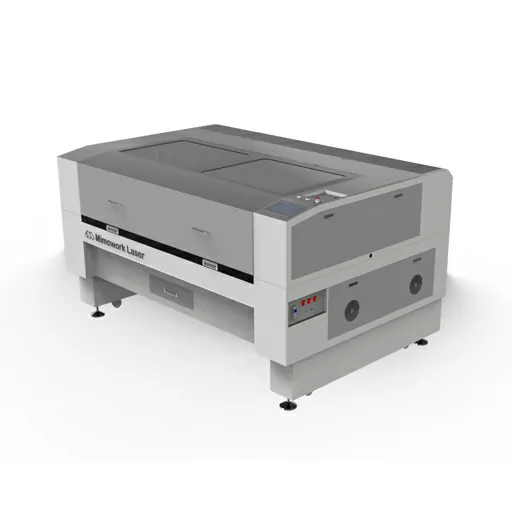

F100 Laser Cutter Machine
Versatile Mid-Size Laser for Small Business
The F100 Laser Cutter is engineered for small businesses that demand precision and speed. Its 39” x 24” work area handles diverse projects, while the 38.1mm lens and bidirectional technology deliver flawlessly detailed engravings at double the speed. Ready to run with LightBurn, it’s the versatile mid-size laser built to elevate your product quality and production efficiency.
Get QuoteSPECIFICATIONS
F100 Laser Cutter Machine
Technical Data
| Working Area (W * L) | 1000 * 600mm (39.3″ * 23.6″) |
| Laser Power (Watt) | 60w, 80w |
| Laser Source | CO2 Glass Laser Tube (Optional RF Metal Laser Tube) |
| Max Speed | 400mm/s (15.7″/s) |
| Acceleration Speed | 4000mm/s2 (157.4″/s2) |
| Mechanical Control System | Step Motor Drive & Belt Control |
| Cooling Device | Water Chiller |
| Electricity Supply | 110V/ Single Phase/ 60HZ (Configurable for Regional Voltage) |
| Packing Size (W * L * H) | 1700 * 1350 * 1200mm(66.9″ * 53.1″ * 47.2″) |
Engrave your brand, cut your products. All in one.
Precision Engraving Specialist
- Engineered for Flawless Detail:
Built for high-resolution engraving. Its specially designed laser tube produces an exceptionally fine beam spot, capturing intricate details and delivering razor-sharp edges on your most complex designs. - Double-Speed Engraving with Bidirectional Technology:
Supporting bidirectional engraving, meaning the laser head emits light on both forward and reverse passes along the X-axis, effectively doubles your engraving speed compared to standard unidirectional machines. - Seamless Workflow with LightBurn Software:
The F100 comes ready to integrate with LightBurn, the industry-preferred software for laser engraving and cutting. Enjoy an intuitive interface, powerful editing tools, and direct driver support for a smooth and reliable user experience.
F100 Laser Cutter Machine: Components

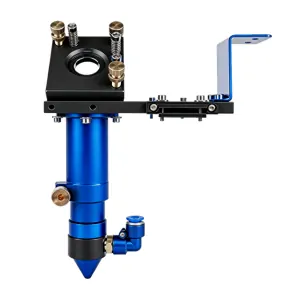

Lightweight Laser Head Assembly
Speed and precision start with minimal mass. Our lightweight laser head reduces inertia on the X-axis, allowing for significantly faster acceleration and deceleration. This translates directly to shorter job times and the ability to achieve incredibly sharp details, even at high engraving speeds.

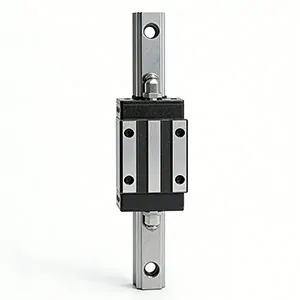

Precision Linear Guideways
For motion that is consistently smooth, rigid, and free of backlash. Unlike standard rails, linear guideways ensure the laser head travels with unwavering stability on both forward and reverse passes. This eliminates wobble and is the mechanical foundation that makes our high-speed, bidirectional engraving both possible and precise.

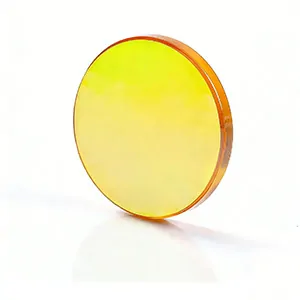

38.1mm Focal Length Lens (Optimized for Engraving)
This lens is the secret to our exceptional detail. The 38.1mm (1.5″) focal length creates a smaller, more concentrated beam spot at the material’s surface, which is ideal for fine-featured engraving, sharp text, and complex graphics. It’s the optimal choice for achieving the highest resolution results.

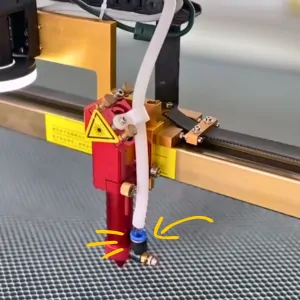

Integrated Air Assist System
A constant, focused stream of air is directed at the point of contact. This critical function blows away combustible gases and debris during engraving, preventing flare-ups and ensuring the laser energy interacts with a clean surface. The result is cleaner, brighter engravings without scorch marks or residue.
Honeycomb Work Bed
Achieve perfect focus across your entire material sheet. The rigid, flat honeycomb platform provides stable support for flat materials like wood, acrylic, and coated metals. Its open structure minimizes back reflections and allows debris to fall away, protecting the underside of your workpiece during intricate engraving jobs.
F100 Laser Cutter Machine: Optional Upgrades

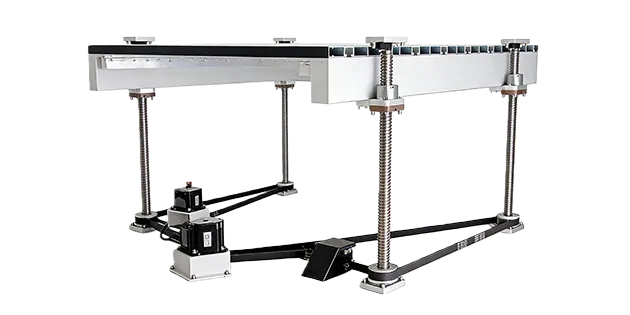

Motorized Lifting Table
Go beyond flat sheets. This automated lifting system allows you to engrave on objects of varying thicknesses with perfect focus every time. Simply set the height, and the bed automatically adjusts, making it effortless to work with stacked materials, surfaces with height clearance, or premade products like stools and jewelry boxes.

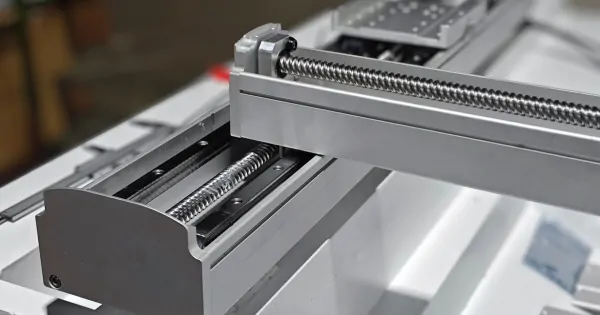

Ball Screw & Servo Motor Drive System
Unlock maximum speed and precision. By upgrading to a ball screw and servo motor on the X and Y axes, the F100 achieves remarkable positioning accuracy and can sustain engraving speeds up to 2000mm/s. This is the ultimate upgrade for high-volume production environments where every second counts, without compromising on the quality of the finest details.

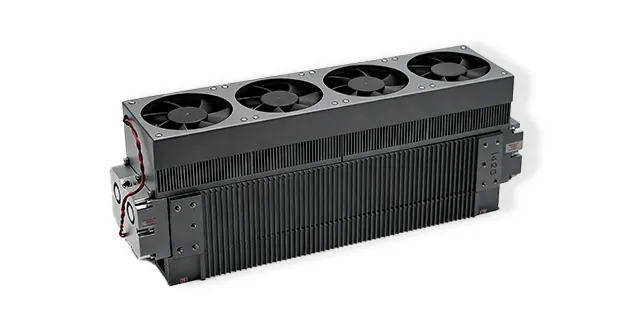

RF Metal Laser Tube (30W / 60W)
Step up to industrial-grade performance. The RF Metal Tube upgrade delivers a significantly finer beam spot and superior beam quality compared to standard glass tubes. This results in exceptionally crisp, high-contrast engravings, especially on metals and plastics. Enjoy faster processing times, exceptional stability for long-running jobs, and a dramatically longer operational lifespan.
Related Videos
2000mm/s Laser Engraver
Dominate your production schedule with the speed of our CO2 laser machine. An RF metal tube delivers blistering 2000mm/s engraving, turning large batches of wood, acrylic, and more into profit, not a time-consuming bottleneck. This isn’t just an engraver; it’s an efficiency engine built for the demands, delivering precise, high-dpi detail that elevates your work from custom to incredible.
How to Cut & Engrave Acrylic
Unlock the profit potential of acrylic. This video shows you how to properly cut and engrave plexiglass to create crystal-clear, premium products like LED signs, keychains, and decorative stands. We’ll give you the specific settings and tips to move beyond trial and error, turning sheets of acrylic into high-value, custom goods that your customers will love.
Material Compatibility
| MATERIAL | ENGRAVE | CUT |
|---|---|---|
| Acrylic | ||
| Anodized Aluminum | ||
| Ceramic | ||
| Cloth | ||
| coated Metals | ||
| corian | ||
| Cork | ||
| Delrin | ||
| Fabric | ||
| Fiberglass | ||
| Glass | ||
| Leather | ||
| Marble | ||
| Stainless Steel | ||
| brass |
| MATERIAL | ENGRAVE | CUT |
|---|---|---|
| Matte Board | ||
| Melamine | ||
| Mother of Pearl | ||
| Myiar | ||
| Painted Metals | ||
| Paper | ||
| Plastic | ||
| Pressboard | ||
| Rubber | ||
| Tile | ||
| Wood | ||
| Wood Veneer | ||
| Titanium | ||
| Bare Metals |
* CO2 lasers wil mark bare metals when coated with a metal marking solution. For more information, vist our laser metal marking page.
