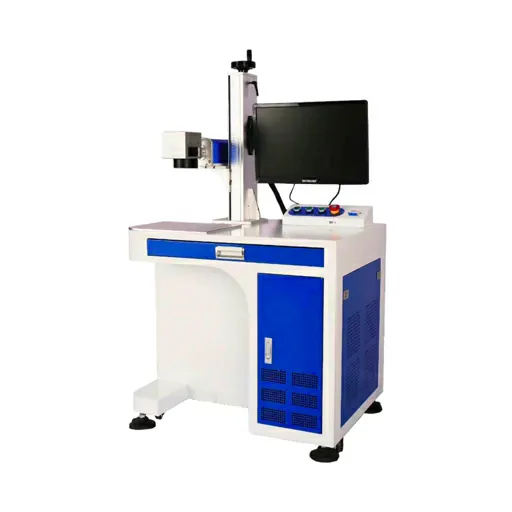

Fiber Laser Marking Machine
For Permanent, High-speed Traceability on Metals.
- Our Fiber Laser Marking Machine is engineered for high-speed, permanent marking on metals and engineered plastics.
- It uses a robust solid-state laser to create crisp serial numbers, barcodes, and logos directly onto parts, making it the go-to solution for industrial traceability and branding.
- The process is consumable-free, requiring no inks or chemicals, which results in exceptional contrast and durability on materials like steel, aluminum, and anodized surfaces.
- This system excels in demanding production environments where reliability, speed, and a clean, deep mark are non-negotiable.
SPECIFICATIONS
Fiber Laser Marking Machine
Technical Data
| Working Area (W * L) | 70² – 200² mm |
| Beam Delivery | 3D Galvanometer |
| Laser Source | Fiber Laser |
| Laser Power | 20W, 30W, 50W |
| Marking Speed | 8,000mm/s |
| Suitable Material | Metal |
Components
Fiber Laser Source
A robust, air-cooled source built for permanent alphanumeric codes, logos, and data matrix marks on metals, most engineered plastics, and anodized surfaces.
High-Speed Galvo Scanner
A standard galvanometer system for precise beam steering, delivering fast marking speeds suitable for most serialization and basic graphic tasks.
Standard Field Lens (F-Theta)
Provides a clear focus point and consistent marking area for general-purpose applications.
Integrated Air Cooling
Maintains optimal operating temperature for the laser source under standard duty cycles.
If you have specific component preferences, we can discuss configuration options to meet your needs.
Upgrades & Variants

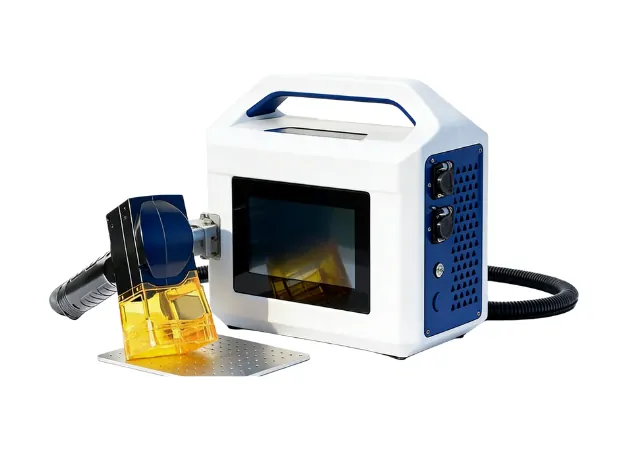

Handheld Laser Marking System
A portable marking head with integrated safety controls, connected via fiber optic cable to the main laser source for maximum operational flexibility.

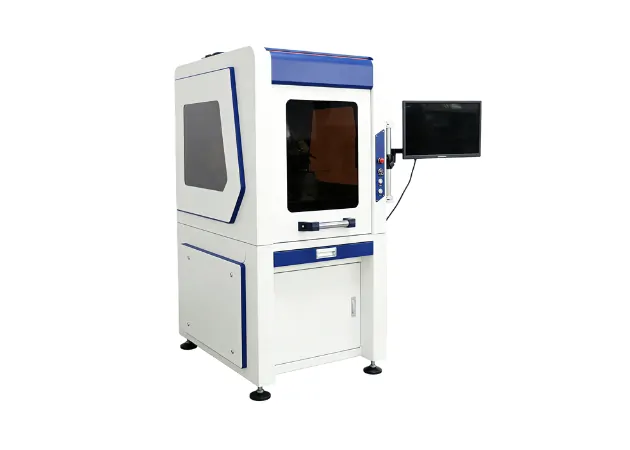

Safety Enclosure System
A fully interlocked, robust enclosure with integrated high-flow fume extraction and particulate filtration paths.
Field-of-View Lens
Dynamic focus head for marking on uneven surfaces or larger areas. Enables complex 3D shapes marking.

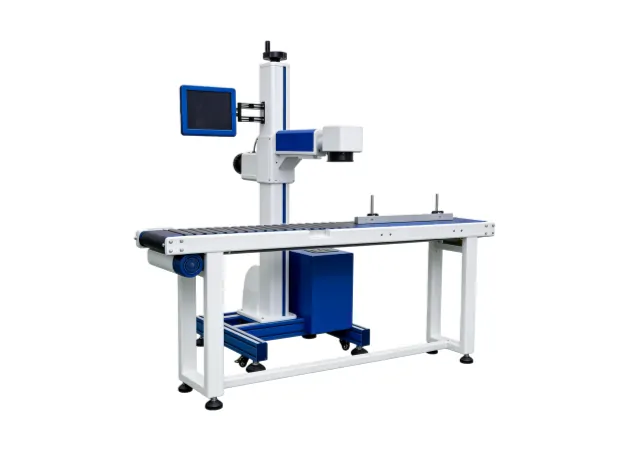

In-Line Production Integration
Complete Reconfiguration for Flight Marking with Automated Vision System for high-volume manufacturing.
With our fully independent R&D department, we can help develop custom solutions for your specific requirements and desired marking effects.
Related Videos
How to Choose Fiber Laser Marking Machine?
Stop the guesswork before investing in a fiber laser. This is your definitive guide to understanding exactly what these machines do, which industries rely on them, and how to pinpoint the right model for your specific metal marking, engraving, or coding needs.
We break down the critical factors so you can invest with confidence, ensuring your new laser directly boosts your shop’s capability and bottom line.
Material Compatibility
| MATERIAL | MARK |
|---|---|
| Stainless Steel | |
| Aluminum | |
| Titanium | |
| Copper | |
| Gold / Silver | |
| ABS | |
| Acrylic (PMMA) | |
| Polycarbonate (PC) | |
| PET / PES | |
| Nylon | |
| PVC (Vinyl) | |
| PTFE |
| MATERIAL | MARK |
|---|---|
| PVC (Vinyl) | |
| PTFE/Teflon | |
| Epoxy Resin | |
| Engineered Wood (MDF) | |
| Natural Leather | |
| Glass / Ceramics | |
| Silicon (Wafer) | |
| Stone / Marble | |
| Paper/Cardboard | |
| Painted/Coated Metals | |
| Anodized Aluminum | |
| Plastic with Laser Additive |
Processing PVC or PTFE based materials with this laser marker generates hazardous fumes.
The use of appropriate Personal Protective Equipment (PPE) and a high-efficiency fume extraction system is mandatory.
We strongly recommend purchasing a compatible fume extractor if your shop primarily works with these materials.
