From Table to CAD in a Flash.

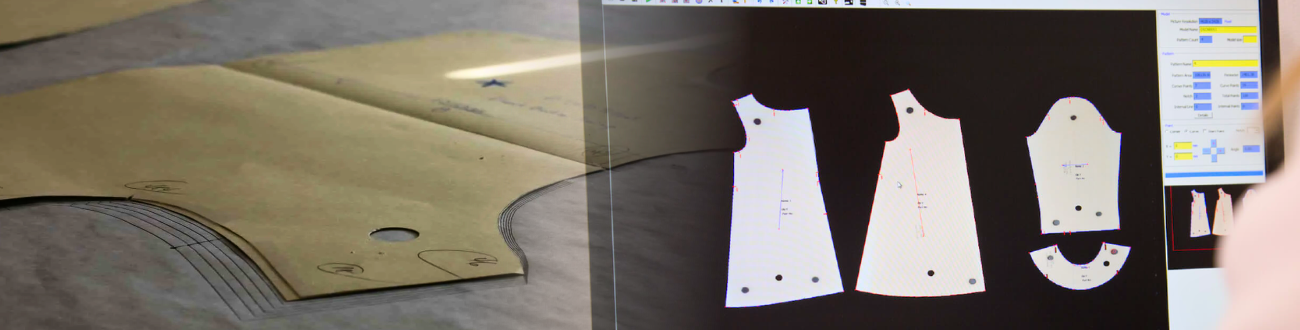

Ditch the manual tracing. MimoPROTOTYPE instantly digitizes physical patterns with pinpoint accuracy, so you can spend less time measuring and more time creating. From Physical Sample to Digital Pattern in Seconds. No Manual Tracing Required.

Features & Highlights

of MimoPROTOTYPE

  • Digitize Instantly: Convert physical samples into accurate digital data at a 1:1 ratio.
  • Measure with Precision: Instantly verify the size, shape, and curves of garments or cut pieces.
  • Rework on the Fly: Modify and redesign your sample plate digitally in minutes, not hours.
  • Streamline R&D: Slash the time it takes to go from concept to new product development.

Label Information with Ease:

Keep your materials straight. For every piece, you can tag fabric details like content, color, and weight.

Need to send all the pieces made from the same textile to typesetting? You can batch them into one file with a single click.

Universal Format Support:

Save your files in the industry-standard AAMA-DXF format. Even read old PLT/HPGL files and convert them to DXF.

Once your file is perfected, export it directly to your laser cutter or plotter. The process is seamless from start to finish.

Industry & Application

Designed for your Niche

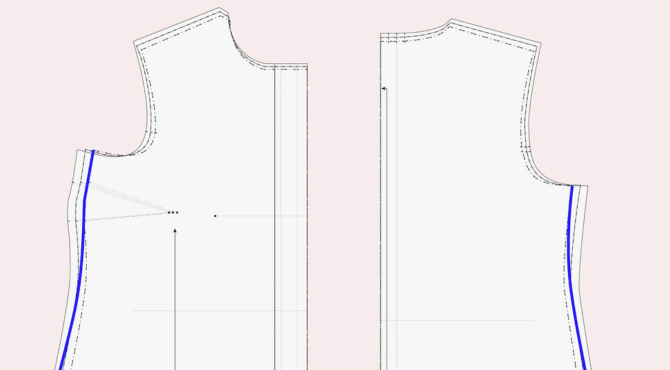

The Universal Starting Point

Start Getting Things Done

You know the drill. A client sends over a “finalized” sample, but it doesn’t match the spec.

Or you’re staring at a stack of patterns, dreading the hours of manual tracing ahead.

It’s a bottleneck that kills your workflow and eats into your bottom line.

Technical Specifications

of MimoPROTOTYPE

Core FunctionConverts Physical Sample Pieces into Digital Patterns Using a Camera Scanner.
Compatible MachinesMimoWork F/C Series CO2 Laser Cutters
Input File FormatsIndustry-standard AAMA-DXF format
Output CommandProprietary DSP Code (for embedded DSP controller)
System SupportWindows 7, 10 & 11 (64-bit)
Connection & InterfaceOffline Version with USB 2.0/3.0 or Ethernet connection

Suitable Machine

of MimoPROTOTYPE

* All MimoWork F/C-Series Laser Cutter Machines are compatible with MimoPROTOTYPE
