How Thick Can a 200W CO2 Laser Cut?

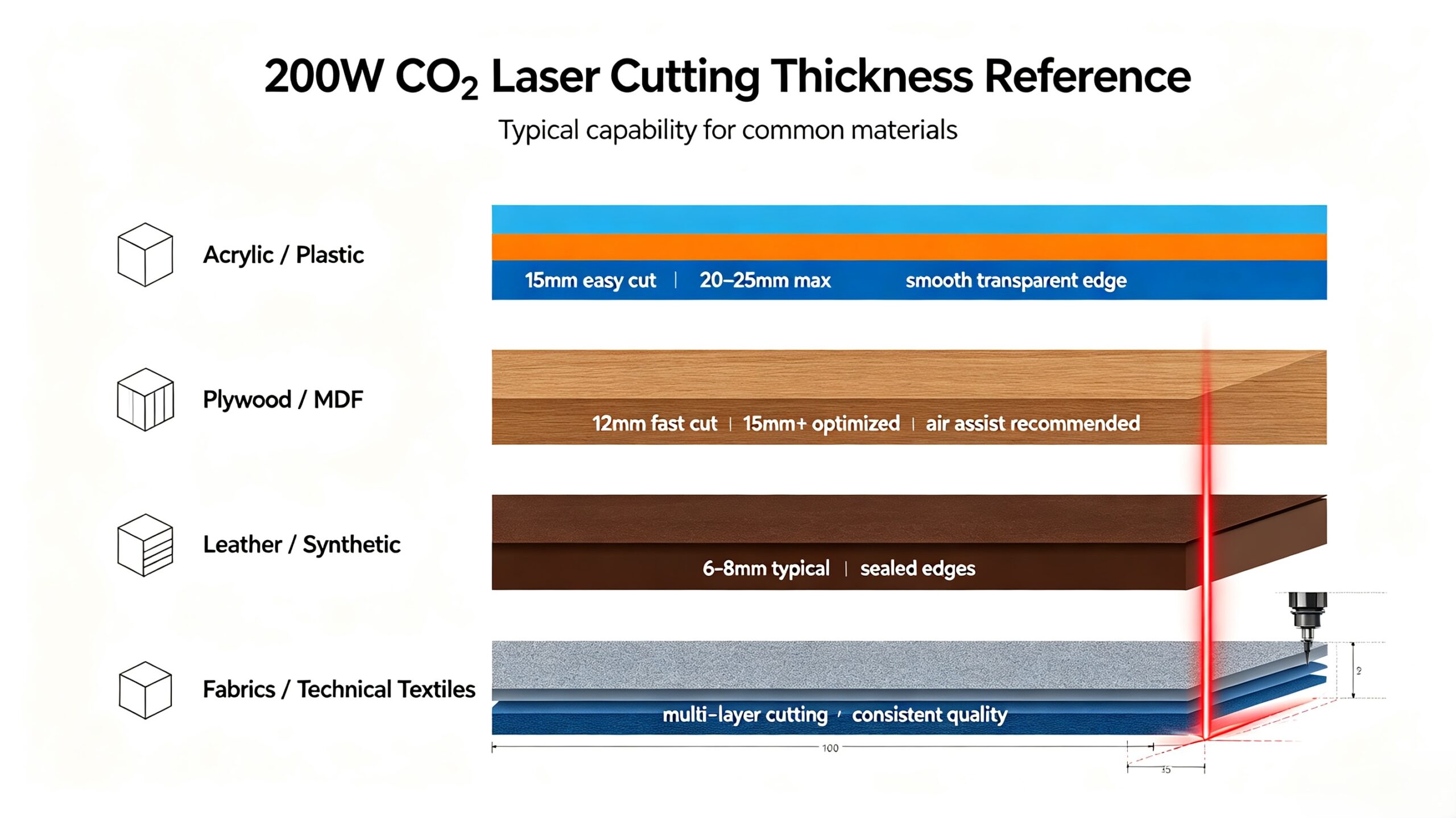

200W CO2 Laser Cutting Thickness Chart

A 200W CO2 laser operates at a 10.6μm wavelength, which is highly effective for processing non-metal materials such as acrylic, wood, fabric, leather, and plastic.

These values represent common industrial applications. Actual results may vary depending on material composition, moisture content, machine settings, and operator experience.

How Thick Can a 200W CO2 Laser Cut Different Materials?

Acrylic and Plastic Materials

Acrylic is one of the best materials for a 200W CO2 laser cutter because it absorbs the 10.6μm wavelength efficiently.

A properly configured 200W laser system can cut:

• 15mm acrylic easily for daily production
• 20–25mm acrylic for thicker applications

The cutting edge is naturally smooth and transparent because the laser melts and vaporizes the acrylic during processing.

Common applications include:

• Signage
• Display panels
• Decorative products
• Industrial covers
• Acrylic fabrication

Wood, Plywood, and MDF

Wood cutting performance depends heavily on material density and resin content.

A 200W CO2 laser can typically process:

• 12mm plywood at high production speed
• 15mm or thicker boards with optimized parameters

A 200W CO2 laser cutter can typically process:

• 12mm plywood for regular production applications
• 15mm or thicker wood boards with optimized cutting parameters

For thicker wood materials, proper focus adjustment, sufficient air assist, and suitable cutting speed are essential to maintain edge quality and reduce burning.

Can a CO2 Laser Cut 25mm Plywood?

For manufacturers exploring the cutting limits of CO2 laser technology, thick plywood testing provides a useful reference.

The following video demonstrates a CO2 laser cutting 25mm plywood, showing how high-power CO2 laser systems can process thick wood materials with optimized machine settings.

25mm Plywood Laser Cutting Test: Exploring CO2 Laser Cutting Capability

For thicker wood materials, air assist is essential because it:

• Removes smoke and debris from the cutting area
• Reduces flame formation
• Improves edge quality

Applications include:

• Furniture components
• Wooden crafts
• Architectural models
• Packaging products

Leather and Synthetic Materials

Leather processing is another common application for high-power CO2 lasers.

A 200W CO2 laser cutting machine can cut:

• Genuine leather
• Synthetic leather
• Automotive upholstery materials

Typical thickness capability is around 6–8mm.

Compared with mechanical cutting methods, laser processing provides:

• No blade wear
• Sealed edges on synthetic fabrics
• High precision for complex patterns

Fabrics and Technical Textiles

In textile manufacturing, cutting thickness is usually measured by layers rather than a single sheet.

A 200W CO2 laser is suitable for:

• Apparel fabrics
• Industrial textiles
• Filter materials
• Composite fabrics

With automatic feeding systems, manufacturers can achieve continuous production while maintaining consistent cutting quality.

200W CO2 Laser vs 100W CO2 Laser: Which Cuts Thicker?

Many manufacturers compare 100W and 200W CO2 laser cutters when selecting equipment.

A 200W CO2 laser does not simply double the cutting thickness compared with a 100W system. Instead, it provides higher energy density, faster processing speed, and better capability for demanding production environments.

Factors That Affect 200W CO2 Laser Cutting Thickness

Laser power is important, but several other factors determine the final cutting result.

1. Lens Focal Length

The correct focal lens helps maintain cutting efficiency through thick materials.

• Short focal lenses: Better for fine engraving and thin materials
• Longer focal lenses: Better for thicker materials because they provide a deeper focus range

For materials above 12mm, a longer focal length lens is often preferred.

2. Air Assist System

Air assist plays an important role when cutting thick materials.

It helps to:

• Remove smoke and melted residue
• Protect the lens
• Reduce burning on wood materials
• Improve cutting consistency

For industrial 200W CO2 laser applications, a high-performance air assist system is highly recommended.

3. Laser Tube Type

Different CO2 laser tube technologies affect beam quality and production performance.

Glass CO2 Laser Tubes

Advantages:

• Cost-effective
• Suitable for general industrial cutting
• Reliable for thick non-metal materials

RF Metal CO2 Laser Tubes

Advantages:

• Higher beam quality
• Faster response speed
• Better for precision applications

The ideal choice depends on production requirements and material types.

Is a 200W CO2 Laser Cutter Suitable for Industrial Production?

A 200W CO2 laser cutter is a strong choice for businesses that require:

• Thick material cutting
• Continuous production
• Higher processing speed
• Stable cutting quality

Industrial applications include:

• Acrylic fabrication
• Furniture manufacturing
• Textile production
• Automotive interior materials
• Packaging
• Custom manufacturing

For larger production requirements, industrial CO2 laser systems can be configured with larger working areas, automatic feeding systems, and customized power options.

Mimowork provides industrial CO2 laser cutting solutions with configurable working areas and laser power options from lower-power systems to high-power industrial machines, helping manufacturers select the right setup for their materials and production needs.

Frequently Asked Questions

Can a 200W CO2 laser cut metal?

No. A 200W CO2 laser is mainly designed for non-metal materials such as acrylic, wood, leather, fabric, and plastic. Metal cutting usually requires fiber laser technology.

What is the thickest acrylic a 200W CO2 laser can cut?

A 200W CO2 laser can typically cut around 20–25mm acrylic when using suitable optics, air assist, and optimized cutting parameters.

Is a 200W CO2 laser better than a 100W laser cutter?

A 200W CO2 laser provides greater cutting capability and higher production efficiency, especially for thicker materials and industrial applications.

What materials can a 200W CO2 laser cutter process?

A 200W CO2 laser cutter can process acrylic, wood, plywood, MDF, leather, textiles, cardboard, rubber, and many other non-metal materials.

Conclusion

A 200W CO2 laser cutter can typically cut up to 25mm acrylic, 18mm plywood, and 8mm leather, making it suitable for industrial applications requiring deeper cutting capability and higher productivity.

However, maximum thickness depends on more than laser power. Proper lens selection, air assist performance, material characteristics, and machine design all influence the final result.

For manufacturers looking to upgrade from lower-power CO2 laser systems, a 200W CO2 laser cutting machine offers a practical balance between cutting depth, production speed, and investment efficiency.
